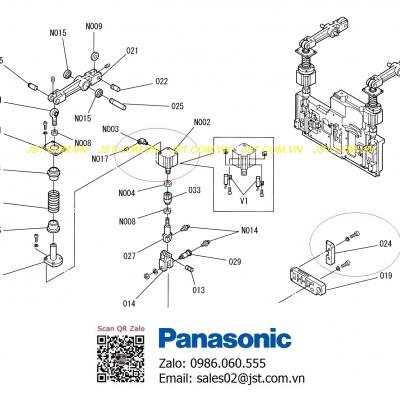

TAPE CUTTER SECT.(3)
| PART NAME 部 品 |
Q'TY 個数 |
REMARKS 備 考 |
ｲﾗｽﾄ No. REF No. |
| 1 | 1017714029 | ﾌﾟﾚｰﾄ | PLATE |
| 3 | 1041318003 | ｶﾗｰ | COLLAR |
| 4 | 1041318004 | ﾊﾞﾈ | SPRING |
| 5 | 1017714039 | ｶﾗｰ | COLLAR |
| 10 | 104131801403 | ﾌﾞﾛｯｸ(R) | BLOCK(R) |
| 11 | 108711801101 | ｼｬﾌﾄ | SHAFT sales02@jst.com.vn |
| 13 | 1017714044 | ﾋﾟﾝ | PIN |
| 14 | 1083818014 | ｼﾞｮｲﾝﾄ | JOINT |
| 15 | 1017714035 | ﾋﾟﾝ | PIN |
| 19 | 108711801902 | ｽﾗｲﾀﾞ | SLIDER |
| 21 | 104131803204 | ﾚﾊﾞｰ | LEVER |
| 22 | 102460903701 | ﾋﾟﾝ | PIN |

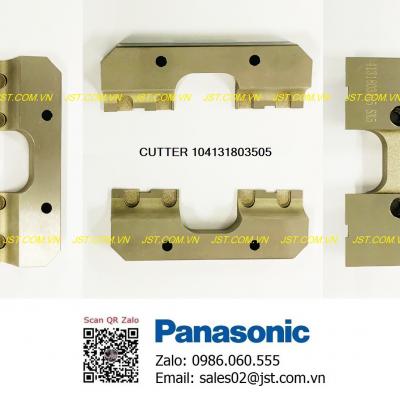

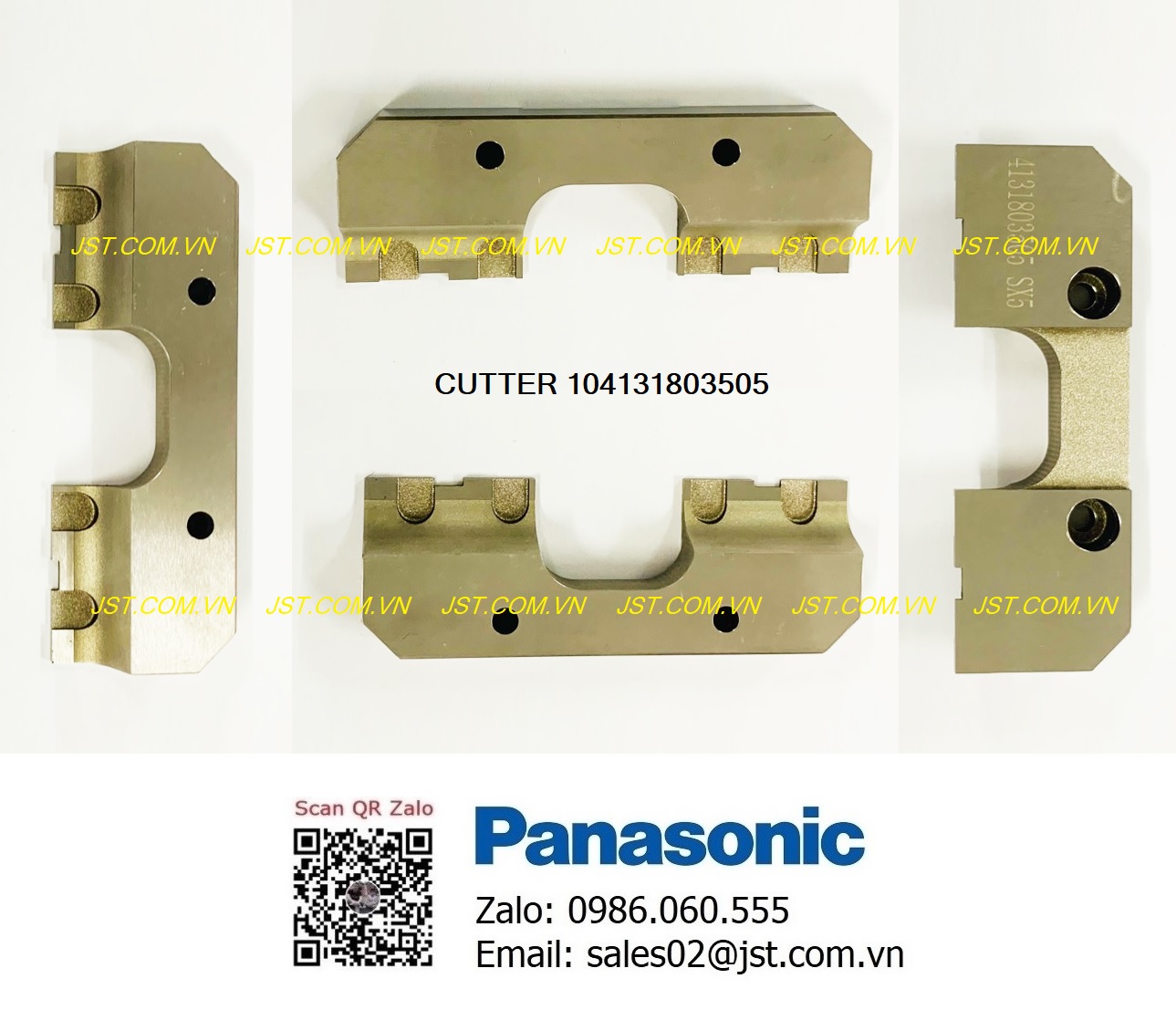

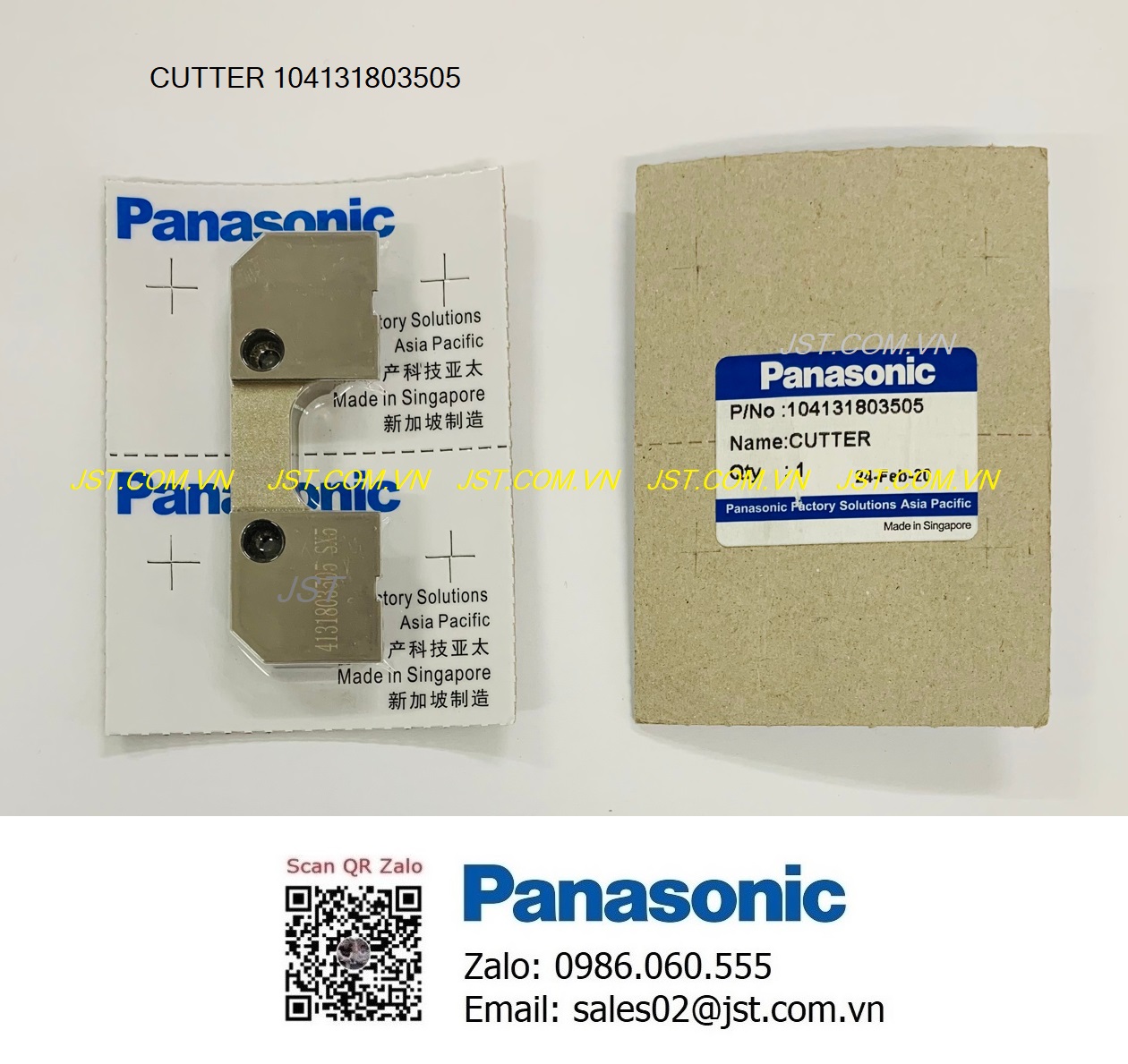

| 24 | 104131803505 | ｶｯﾀｰ | CUTTER |
| 25 | 1041318036 | ｼｬﾌﾄ | SHAFT |
| 26 | 108711802601 | ﾚｰﾙ(ｶﾞｲﾄﾞ) | RAIL(GUIDE) |
| 27 | 1046918051 | ﾛｯﾄﾞ | ROD |
| 28 | 1041318040 | ﾋﾟﾝ | PIN |
| 29 | 104131804101 | ﾋﾟﾝ | PIN |
| 33 | 104131804701 | ｱｼﾞｬｽﾀ | ADJUSTER |
| 34 | 108381803401 | ﾚﾊﾞｰ | LEVER |
| N001 | N534P0S12L | ﾛｯﾄﾞｴﾝﾄﾞ | ROD END |
| N002 | N401CDQ2-A18 | ｼﾘﾝﾀﾞ | CYLINDER |
| N003 | N431KQ2L-216 | ﾂｷﾞﾃ | FITTING |
| N004 | N401NT04 | ﾅｯﾄ | NUT JST.COM.VN |
| N008 | XNHN12DFPL | ﾛｯｶｸﾅｯﾄ | HEXAGON NUT |
| N009 | N531NART-016 | ﾛｰﾗﾌｫﾛｱ | ROLLER FOLLOWER |
| N013 | N532NAST12 | ﾛｰﾗﾌｫﾛｱ | ROLLER FOLLOWER |
| N014 | N560A6FBN | ｸﾞﾘｰｽﾆｯﾌﾟﾙ | GREASE NIPPLE |
| N015 | XLJNNA5902 | ﾆｰﾄﾞﾙﾛｰﾗﾍﾞｱﾘﾝｸﾞ | NEEDLE ROLLER BEARING |
| N017 | N473R41 | ｵﾘﾌｨｽﾘﾝｸﾞ | ORIFICE RING |
| V 1 | N401DA73 | ｾﾝｻ | SENSOR |
