| ｲﾗｽﾄ No. REF No. |
PART No. 品 番 |
部 品 | 個数 |
| 1087110000 | ｿｳﾆｭｳﾕﾆｯﾄ | INSERTION UNIT | |
| 1 | 102031200508 | ｶﾑ(ｽﾗｲﾄﾞ) | CAM(SLIDE) |
| 3 | 102031203702 | ｶﾞｲﾄﾞ | GUIDE |
| 5 | 102031201302 | ﾌﾟﾚｰﾄ(ｶﾞｲﾄﾞ) | PLATE(GUIDE) |
| 7 | N210044349AA | ﾍﾞｰｽ(ｶﾞｲﾄﾞ) | BASE(GUIDE) |
| 9 | 1020312007 | ﾋﾟﾝ | PIN |
| 11 | N210065404AA | ﾊﾞﾈ | SPRING |
| 12 | 1020312022 | ﾛｰﾗ | ROLLER |
| 13 | 1083510012 | ﾋﾟﾝ | PIN |
| 14 | 1020312024 | ﾋﾟﾝ | PIN |
| 15 | 108351000401 | ﾌﾞﾛｯｸ(L) | BLOCK(L) |
| 17 | 1083510010 | ﾚﾊﾞｰ | LEVER |
| 18 | N210044353AA | ﾌﾟｯｼｬ | PUSHER 1MM |
| 20 | 1087110020 | ｶﾞｲﾄﾞ | GUIDE 1MM |
| 22 | 104131002202 | ｶｯﾀｰ(LEFT) | CUTTER(LEFT) |
| 24 | N210044348AA | ｶｯﾀｰ(ｺﾃｲ) | CUTTER(FIXED) |
| 25 | 1083510014 | ﾋﾟﾝ | PIN |
| 26 | 1083510015 | ﾋﾟﾝ | PIN |
| 27 | 1041310028 | ﾌﾞﾗｹｯﾄ | BRACKET |
| 29 | 1020719803 | ﾋﾟﾝ | PIN |
| 30 | 1045418014 | ﾊﾞﾈ | SPRING |
| 31 | 1020312050 | ｶﾑ(ｽﾗｲﾄﾞ) | CAM(SLIDE) |
| 33 | N210028285AA | ﾍﾞﾝﾃﾞｨﾝｸﾞﾀﾞｲ | BENDING DIE JST.COM.VN |
| 35 | 104131003701 | ﾌﾟﾚｰﾄ(ｶﾞｲﾄﾞ) | PLATE(GUIDE) |
| N001 | N506D3 | ｺｳｷｭｳ | STEEL BALL |
| N002 | XUC3FP | E ｶﾞﾀﾄﾒﾜ | RETAINING RING E-TYPE |
| N003 | XUC15FP | E ｶﾞﾀﾄﾒﾜ | RETAINING RING E-TYPE |
| N004 | N986YYYY-186 | ｻﾞｶﾞﾈ | WASHER |
| N005 | XPJ2A5FW | ﾍｲｺｳﾋﾟﾝ | PARALLEL PIN |
| BRACKET | X02G46001 |
| Pin | 1010244015 |
| Belt | N510035529AA |
| CONNECTOR BRACKET | N210069849AD |
| FITTING | N431KQ2L06M5 |
| WASHER | N560WSSB1451 |
| BASE(CLINCH) | 104132101501 |
| COVER | 101632300409 |
| COVER DUCT ASSY | KHY-M221A-A0 |
| Cable Chain GUIDE (ORIGIN) | KHY-M2267-00 |
| Insertion chuck A | N210067114AA |
| Insertion chuck B | N210067115AA |
| NUT | N210157565 |
| BRACKET | N210135837AA |
| GUIDE | N210069670AC |
| BRACKET | N210087140AA |
| SCISSORS UNIT | N610156038AA |
| SCISSORS UNIT | N610156037AA |
| BRACKET | N210069675AB |
| Backup Pin | X02G52201 |
| Moving chuck 5.0 | N210081568AA |
| Fixed chuck 5.0 | N210081569AA |
| Guide chuck 5.0 | N210081570AA |
| FIXED CUTTER | X02G51112 |
| FIXED CUTTER | X02G51111 |
| CUTTER | N210056711AA |
| CUTTER | N210056710AA |
| CUTTER | N210056708AA |
| HOLDER (1) | X02G62109 |
| DETECT PLATE | X01A62012 |
| PHOTO SENSOR | N310EESX672 |
| Belt | N6414405GT30 |
| PIN (4.0) | 1087188101 |
| SPRING | 102030401203 |
| PIN | 102030401301 |
| PUSHER L | 104131001801 |
| CUTTER | 104131803505 |
| Rubber | X02P51506 |

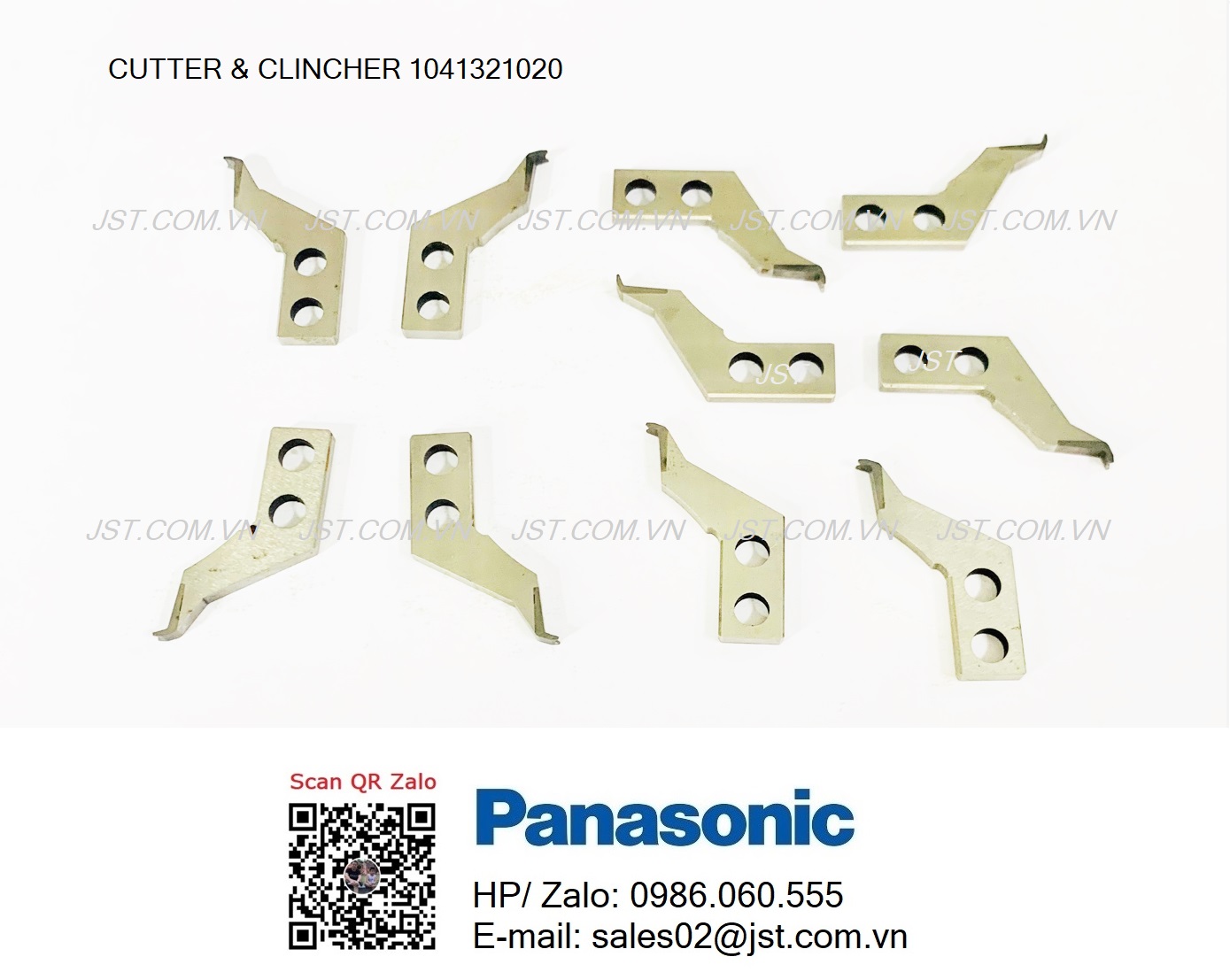

| CUTTER & CLINCHER | 1041321020 |
| LEVER | N210057771AA |
| PUSHER R | 104131001901 |
| CUTTER(FIXED) | N210044348AA |
| PISTON | N210065536AA |
| SHAFT | 104131203601 |
| PACKING | 108711101901 |
| PACKING | KXF0CSQAA00 |
| JOINT | KXF029HAA00 |
| FITTING | KXF02T7AA00 |
| SLIDER | M2103018 |
| Guide Pin 1.6 | M2103021 |
| PLATE | 1041305952 |
| PLATE | 1041305953 |
| Driver tip L | 46977501 |
| Driver tip R | 46977601 |
| Cutter | 51208502 |
| Bushing Cutter | 51208602 |
| Continuity Cable Assy | 47307703 |
| SSSCPP10-32*3/8 | 80003814 |
| BRACKET ,ADJ | 40346801 |
| BELT CONVEYOR | 43264307 |
| BELT CONVEYOR | 43264339 |
| Guide Top A | 46364706 |
| Guide Top A | 46364705 |
| Washer ,Strap | 48748501 |
| Former,STD Left | 46805406 |
| Blade ,Shear STD LH | 46805213 |
| Blade ,Shear STD RH | 46806213 |
| Shoulder Screw | 10463013 |
| Shaft Pivot | 47630001 |
| Wheel Driver | 30647903 |
| PUSHER L | 104131001801 |
| PUSHER R | 104131001901 |
| BENDING DIE L | N210028285AA |
| BENDING DIE R | N210028286AA |
| CUTTER(RIGHT) | 104131002302 |
| CUTTER(LEFT) | 104131002202 |
| CUTTER(FIXED) | N210044348AA |
| CUTTER | 104131803505 |
| CUTTER & CLINCHER | 1041321020 |
| TUBE | N434YYYY-003 |
| BASE(CUTTER) | 1083818061 |
| CUTTER(R) | 1083818062 |
| BRACKET(R) | N210027184AA |
| SPACER | 1041323012 |
| BALL BEARING | XLCNF694ZZ |

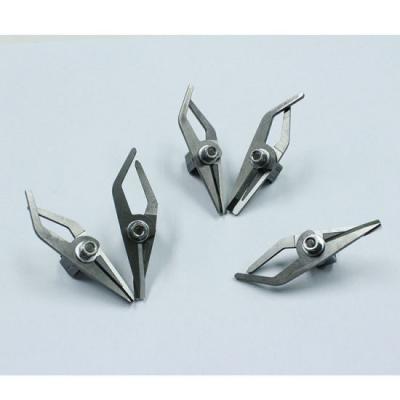

| SCISSORS UNIT CUTTER FEEDER RADIAL | X01A38126 |
| CUTTER CUTTER FEEDER AXIAL UIC |
45987901 |
| SPRING | K87-M539M-000 |
| SPRING | KW1-M229K-00X |
| KNOCK PIN | K87-M1112-10X |
| GUIDE PIN | K87-M214P-00X |
| SPRING | KW1-M229K-00X |
| KNOCK PIN | K87-M1112-10X |
| METAL SHAFT | KW1-M226J-00X |
| BOLT,SOCKET HEAD SW | KW1-M22B6-00X |
| CYLINDER ADJ PLATE | KW1-M2284-00X |
| MULTI CYLINDER | KW1-M2285-00X |
| IDLE ROLLER ASSY | KW1-M229L-00X |
| DRIVE ROLLER ASSY | KW1-M229F-00X |
| Cable Chain | KHY-M2267-00 GUIDE X |
| DRIVERBODY,L | 46805306 |
| DRIVERBODY,R | 46806306 |
| Cylinder | M2107007 |
| Guide Pin 1.6 | M2103021 |
| Guide Pin 2.0 | M2103022 |
| Set Screw | M2103033 |
| Set screw | M2103020 |
| Guide pin adj. pin | M2103019 |
| Slider 1.6 | M2103018 |
| Pusher 1.6 | M2103014 |
| Punch 1.6 (LG TYPE) for PCB Mobile |
M2105004 |
| Roller Block | M2103024 |
| Roller | M2103025 |
| Roller Pin | M2103026 |
| Cover , Acrylic | M2108037 |
| O.P Panel Key for line C | M2100013 |
