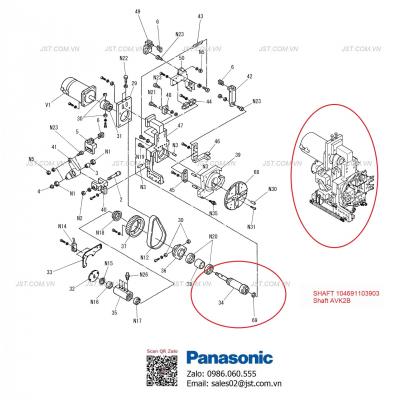

| No. REF No. |
PART No. 品 番 |
部 品 | 個数 | 備 考 |
| 1083811000 | ｲｻｲﾁｬｯｸﾌﾞ | TRANSFER CHUCK UNIT | 1 | |
| 2 | 1046911002 | ﾋﾟﾝ | PIN | 1 |
| 3 | 104131100101 | ｶﾗｰ | COLLAR | 1 |
| 4 | 104131100201 | ｶﾗｰ | COLLAR | 1 |
| 5 | 104131103306 | ｽﾗｲﾀﾞ | SLIDER | 1 |
| 6 | 104131110801 | ｽﾍﾟｰｻ | SPACER | 3 |
| 29 | 104131102702 | ﾌﾟﾚｰﾄ | PLATE | 1 |
| 30 | 104131201402 | ｺｯﾀ | COTTER | 2 |
| 31 | 1041311028 | ﾌﾟｰﾘｰ | PULLEY | 1 |
| 32 | 1046911037 | ﾌﾟﾚｰﾄ | PLATE | 1 |
| 33 | 1046911038 | ﾌﾟﾚｰﾄ | PLATE | 1 |

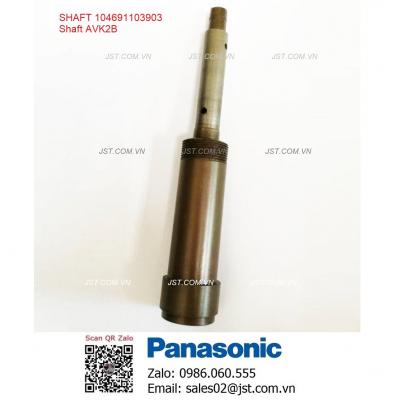

| 34 | 104691103903 | ｼｬﾌﾄ | SHAFT | 1 |
| 35 | 1046911040 | ﾊｳｼﾞﾝｸﾞ | HOUSING | 1 |
| 36 | 104131108601 | ﾌﾗﾝｼﾞ | FLANGE | 1 |
| 37 | 104131108701 | ﾌﾟｰﾘｰ | PULLEY | 1 |
| 38 | 104131105802 | ｽﾍﾟｰｻ | SPACER | 1 |
| 39 | 108381103901 | ｶﾑ | CAM | 1 |
| 40 | 104131102003 | ﾌﾞﾗｹｯﾄ | BRACKET | 1 |
| 41 | 108381104101 | ﾚﾊﾞｰ | LEVER | 1 |
| 42 | 104131108506 | ｽﾗｲﾀﾞ | SLIDER | 1 |
| 43 | 104131106301 | ﾊﾞﾈ | SPRING | 1 |
| 44 | 1041311141 | ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ | LINEAR MOTION UNIT | 1 |
| 45 | 1041311089 | ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ | LINEAR MOTION UNIT | 1 |
| 46 | 108381104601 | ｶﾑ | CAM | 1 |
| 47 | 104131106811 | ﾌﾚｰﾑ | FRAME | 1 |
| 48 | 104131109001 | ﾌﾞﾛｯｸ | BLOCK | 1 |
| 49 | 104131102906 | ｽﾗｲﾀﾞ | SLIDER | 1 |
| 50 | 108381105001 | ｶﾑ | CAM | 1 |
| 68 | 104691107801 | ﾌﾟﾚｰﾄ | PLATE | 1 |
| 69 | 1046911079 | ﾊﾟｯｷﾝ | PACKING | 1 |
| N 1 | XLC6900ZZ | ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ | BALL BEARING | 2 |
| N 2 | XNH10DFY | ﾛｯｶｸﾅｯﾄ | HEXAGON NUT | 1 |
| N 3 | XPJ3E6FW | ﾍｲｺｳﾋﾟﾝ | PARALLEL PIN | 3 |
| N 5 | XNG5BFY | ﾛｯｶｸﾅｯﾄ | HEXAGON NUT | 4 |
| N12 | N6414205GT20 | ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ) | BELT(TIMING) | 1 |
| N14 | N310P914SA1 | ｾﾝｻ | SENSOR | 3 |
| N15 | XUBNSTW12 | C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ | RETAINING RING C-TYPE,SHAFT | 1 |
| N16 | XLC6001ZZ | ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ | BALL BEARING | 1 |
| N17 | XLC6903ZZ | ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ | BALL BEARING | 1 |
| N18 | XNRNFU06SS | ﾛｯｸﾅｯﾄ | LOCK-NUT | 1 |
| N19 | XST4+6FY | ﾄﾗｽｺﾈｼﾞ | TRUSS HEAD SCREW | 4 |
| N20 | XLC6906ZZ | ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ | BALL BEARING | 2 |
| N21 | XVG4A25FP4 | ﾛｯｶｸﾎﾞﾙﾄ | HEXAGON HEAD BOLT | 2 |
| N22 | XVGN4A35FPZ | ﾛｯｶｸﾎﾞﾙﾄ | HEXAGON HEAD BOLT | 2 |
| N23 | N531CF5R-031 | ｶﾑﾌｫﾛｱ | CAM FOLLOWER | 5 |
| N26 | N431M5H4 | ﾎｰｽﾆｯﾌﾟﾙ | FITTING | 4 |
| N30 | XPJ2E6FW | ﾍｲｺｳﾋﾟﾝ | PARALLEL PIN | 1 |
| N31 | N986YYYY-452 | ﾈｼﾞ(ｺﾞｸﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ) | SCREW | 4 |
| N35 | N560N011-015 | ｸﾞﾘｰｽﾆｯﾌﾟﾙ | GREASE NIPPLE | 1 |
| V 1 | 308381400101 | ﾓｰﾀ | MOTOR | 1 |
| N 2 | N401CDQ2-A18 | ｼﾘﾝﾀﾞ | CYLINDER | 2 |
| N 3 | N431KQL0601S | ﾂｷﾞﾃ | FITTING | 4 |
| N 1 | N401CDQ2-418 | ｼﾘﾝﾀﾞ | CYLINDER | 1 |
| N 1 | N403CDA1215 | ｼﾘﾝﾀﾞ | CYLINDER | 1 |
| N 2 | N431KQL06M5 | ﾂｷﾞﾃ | FITTING | 2 |
| N 4 | N401CDG1-723 | ｼﾘﾝﾀﾞ | CYLINDER | 1 |
| N 5 | N431KQL0601S | ﾂｷﾞﾃ | FITTING | 2 |
| N 6 | N405FJR8-006 | ﾌﾛｰﾃｨﾝｸﾞｼﾞｮｲﾝﾄ | FLOATING JOINT | 1 |
| N 7 | XLJNNA5902 | ﾆｰﾄﾞﾙﾛｰﾗﾍﾞｱﾘﾝｸﾞ | NEEDLE ROLLER BEARING | 2 |
| N 8 | N473R40.5 | ｵﾘﾌｨｽﾘﾝｸﾞ | ORIFICE RING | 2 |
| N 9 | N560N011-052 | ｸﾞﾘｰｽﾆｯﾌﾟﾙ | GREASE NIPPLE | 1 |
| V 1 | N401DB54 | ｽｲｯﾁ | SWITCH | 2 |
| N17 | N401CDBM-592 | ｼﾘﾝﾀﾞ | CYLINDER | 1 |
| N 1 | N531CF6RA | ｶﾑﾌｫﾛｱ | CAM FOLLOWER | 10 |
| N 6 | N310P921SA1 | ｾﾝｻ | SENSOR | 3 |
| N12 | XLCNF606ZZ | ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ | BALL BEARING | 2 |
| N14 | N401CDQ2-B07 | ｼﾘﾝﾀﾞ | CYLINDER | 1 |
| N15 | N531NART-016 | ﾛｰﾗﾌｫﾛｱ | ROLLER FOLLOWER | 6 |
| N16 | XLC6003ZZ | ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ | BALL BEARING | 8 |
| N17 | N560RTW2040 | ｻﾞｶﾞﾈ | WASHER | 2 |
| N21 | N560B01BN | ｸﾞﾘｰｽﾆｯﾌﾟﾙ | GREASE NIPPLE | 1 |
| N28 | N644SFC0-060 | ｶｯﾌﾟﾘﾝｸﾞ | COUPLING | 1 |
| N29 | XNGNU6YFP | ﾛｯｸﾅｯﾄ | LOCK-NUT | 1 |
| N31 | XVE10B30FP | ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ | HEX. SOCKET HEAD CAP BOLT | 2 |
| N33 | N560SRW16 | ｻﾞｶﾞﾈ | WASHER | 2 |
| N34 | N406AS22-080 | ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ | SPEED CONTROLLER | 1 |
| N36 | N406AS22-084 | ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ | SPEED CONTROLLER | 1 |
| V 1 | N401DA73 | ｾﾝｻ | SENSOR | 2 |
| V 2 | 3083813001 | ﾓｰﾀ | MOTOR | 1 |

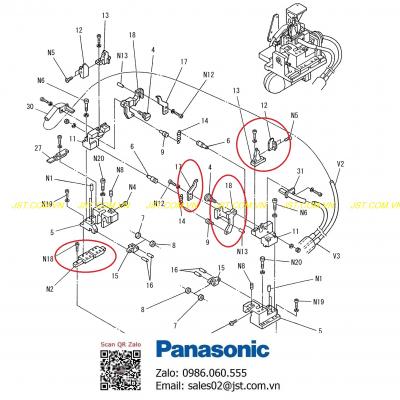

| No. REF No. |
PART No. 品 番 |
部 品 | 個数 |
| 4 | 1016323037 | ﾋﾟﾝ | PIN |
| 5 | 104132102606 | ﾌﾞﾛｯｸ(ｽﾗｲﾄﾞ) | BLOCK(SLIDE) |
| 6 | 1016323034 | ﾋﾟﾝ | PIN |
| 7 | 1010461017 | ﾛｰﾗ | ROLLER |
| 8 | 1010461016 | ﾛｰﾗ | ROLLER |
| 9 | 1011368009 | ﾋﾟﾝ | PIN |
| 11 | 104132101107 | ﾌﾞﾛｯｸ | BLOCK |
| 12 | 101632300409 | ｶﾊﾞｰ | COVER |
| 13 | 104132101501 | ﾍﾞｰｽ(ｸﾘﾝﾁ) | BASE(CLINCH) |
| 14 | 1016323015 | ﾊﾞﾈ | SPRING |
| 15 | 101632300603 | ﾚﾊﾞｰ | LEVER |
| 16 | 1011368033 | ﾋﾟﾝ | PIN |
| 17 | 1041321020 | ｶｯﾀｰ & ｸﾘﾝﾁｬ | CUTTER & CLINCHER |

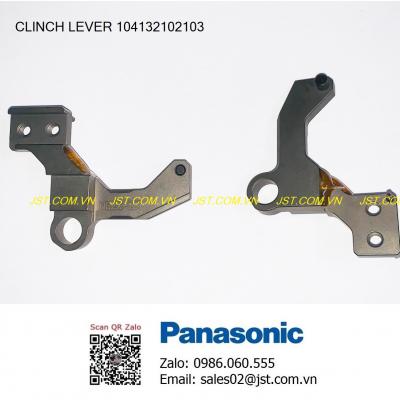

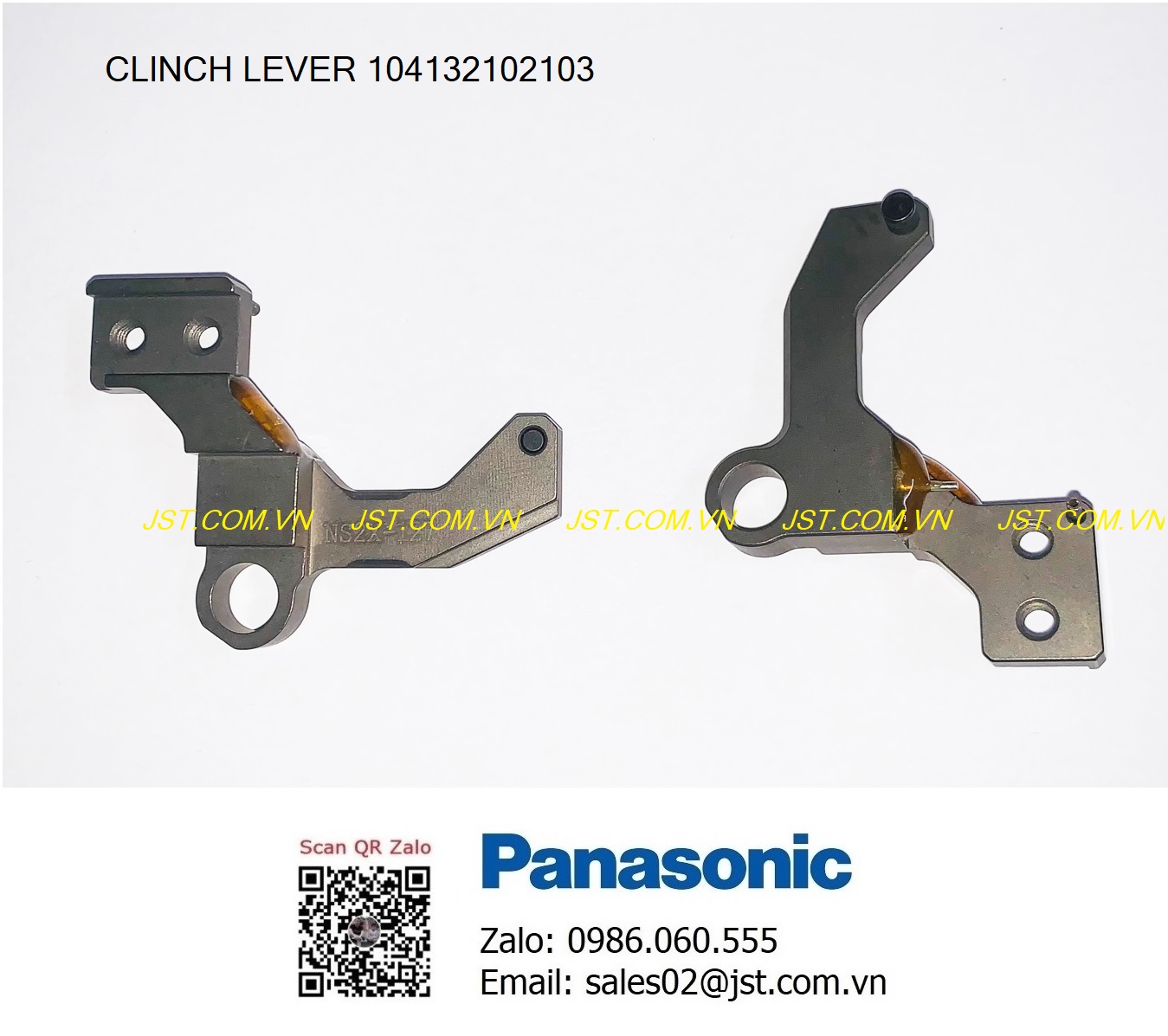

| 18 | 104132102103 | ﾚﾊﾞｰ | LEVER |
| 27 | 1041321027 | ｾﾝｻﾄﾞｸﾞ | DOG FOR SENSOR |
| 30 | 1083821030 | ﾊﾟｲﾌﾟ | PIPE |
| 31 | 104132100204 | ﾊﾟｲﾌﾟ | PIPE |
| N 1 | N986YYYY-508 | ﾍｲｺｳﾋﾟﾝ | PARALLEL PIN |
| N 2 | N5132RSR-255 | ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ | LINEAR MOTION UNIT |
| N 4 | XST3+6FY | ﾄﾗｽｺﾈｼﾞ | TRUSS HEAD SCREW |
| N 5 | XSS25+5FY | ｻﾗｺﾈｼﾞ | FLUSH HEAD SCREW |
| N 6 | XVE2B12FP | ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ | HEX. SOCKET HEAD CAP BOLT |
| N 8 | XXE3C5FP | ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ | HEX. SOCKET SET SCREW |
| N12 | XVE4B7FP | ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ | HEX. SOCKET HEAD CAP BOLT |
| N13 | XPL16A8WFW | ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ | SPRING PIN |
| N18 | XVE2B6FP | ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ | HEX. SOCKET HEAD CAP BOLT |
| N19 | XVE2B4FP | ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ | HEX. SOCKET HEAD CAP BOLT |
| N20 | XVE2B20FP | ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ | HEX. SOCKET HEAD CAP BOLT |
| V 2 | N434YYYY-003 | ﾁｭｰﾌﾞ | TUBE |
| V 3 | N434TF225 | ﾁｭｰﾌﾞ | TUBE |
